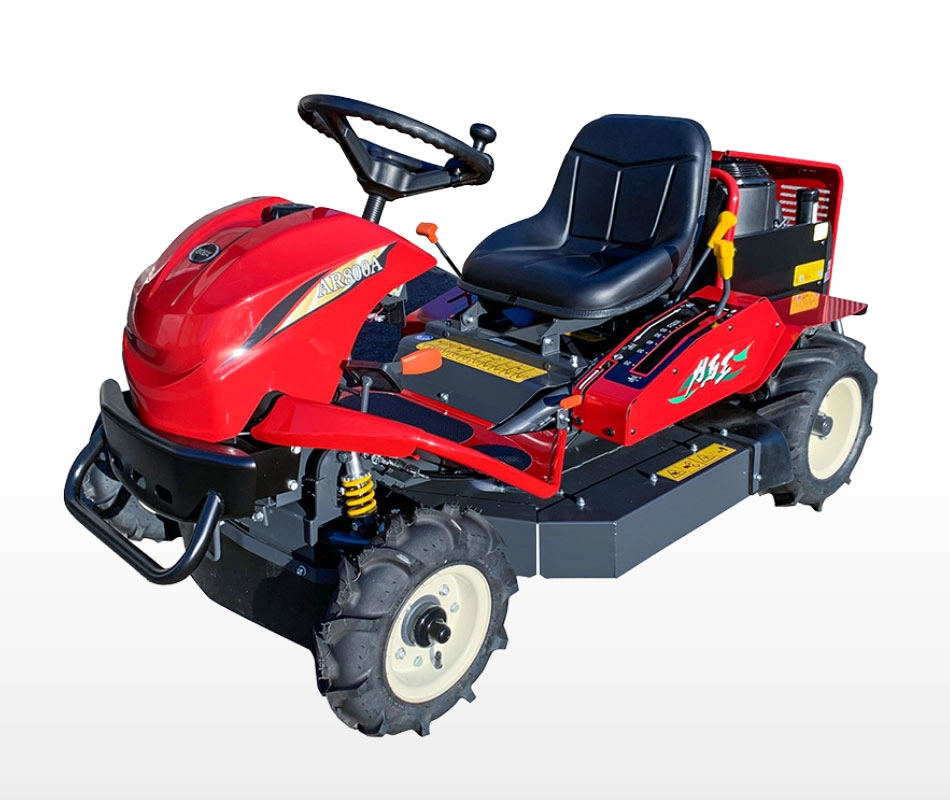

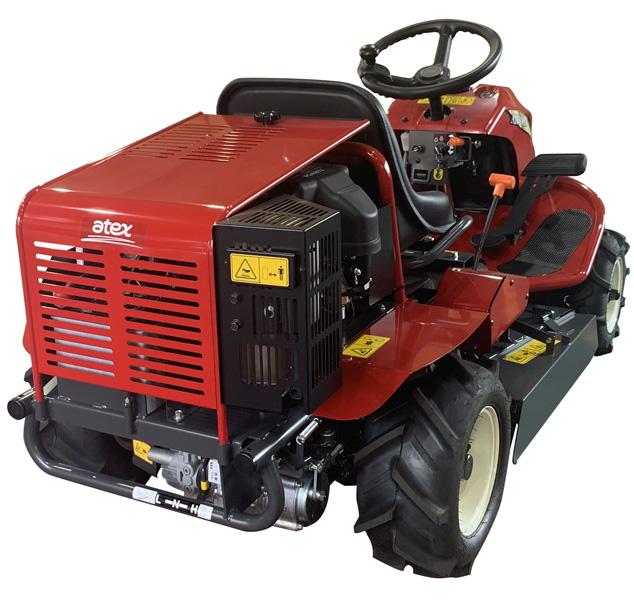

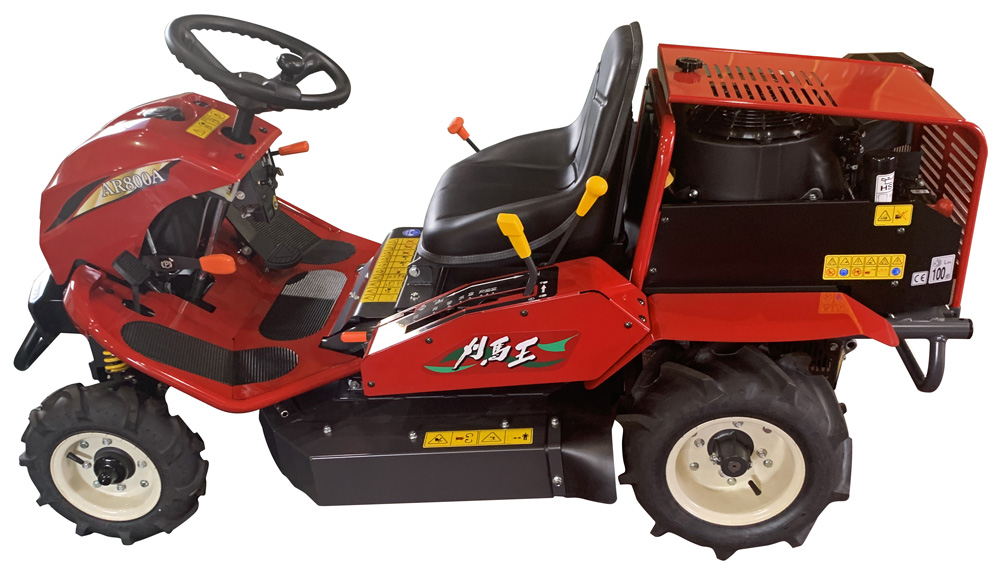

AR800A

2WD Ride-on Mower

Key Features

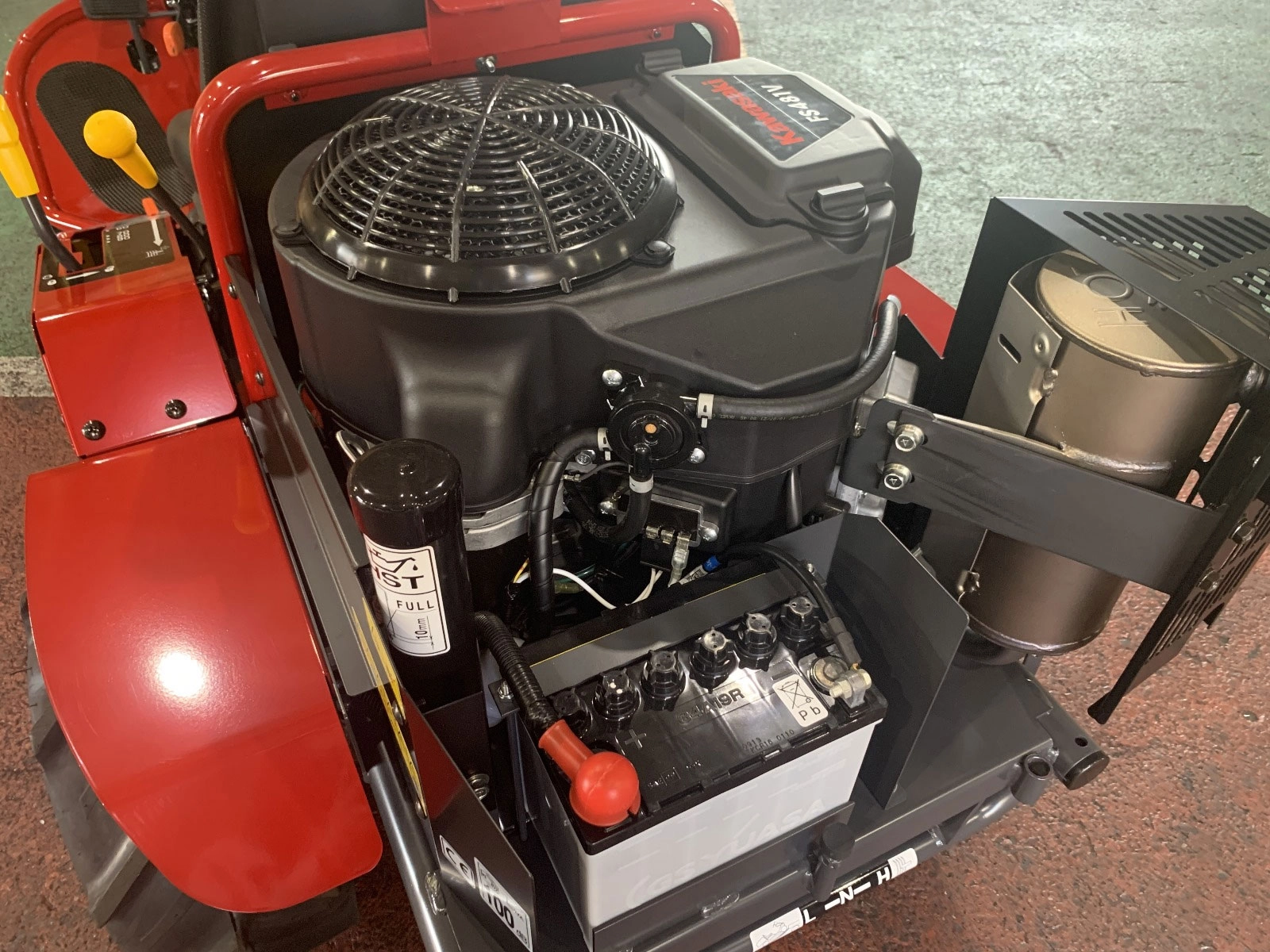

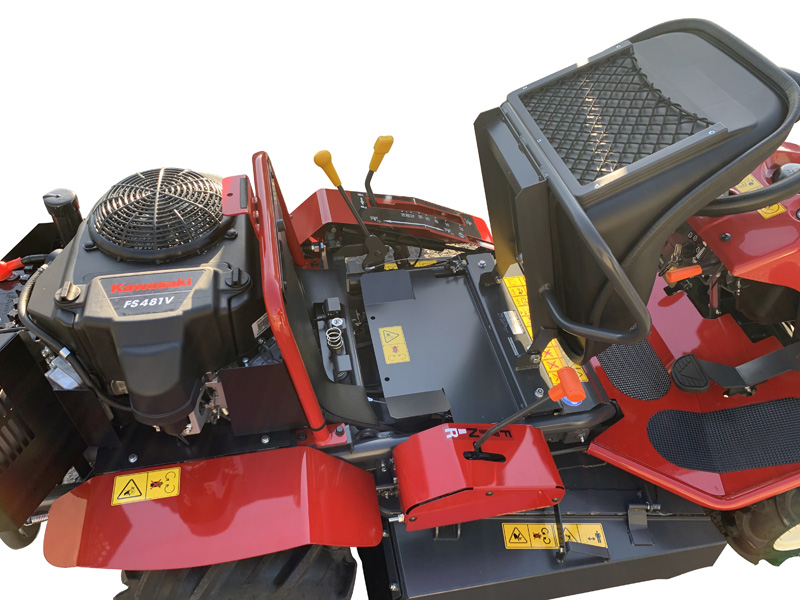

  • Kawasaki FS481 V Twin engine
  • Capable of cutting
    Grass, broom, gorse and saplings.
  • All-terrain performance
    Able to operate in wet, muddy and hilly conditions.
  • Excellent traction
    Clear overgrown areas safely and with ease, thanks to tractor-style mud grip tyres.
  • Heavy duty flail blades
  • Diff lock & Hi-Lo Speed Selection
  • Fabricated chassis
  • Step-less blade height adjustment
  • Expanding shoe emergency & park brake
  • Hand & foot operated travel control
  • Light steering
    With a tight turning radius.
  • Comfortable Adjustable Seat
  • Easy access maintenance points
  • Low centre of gravity

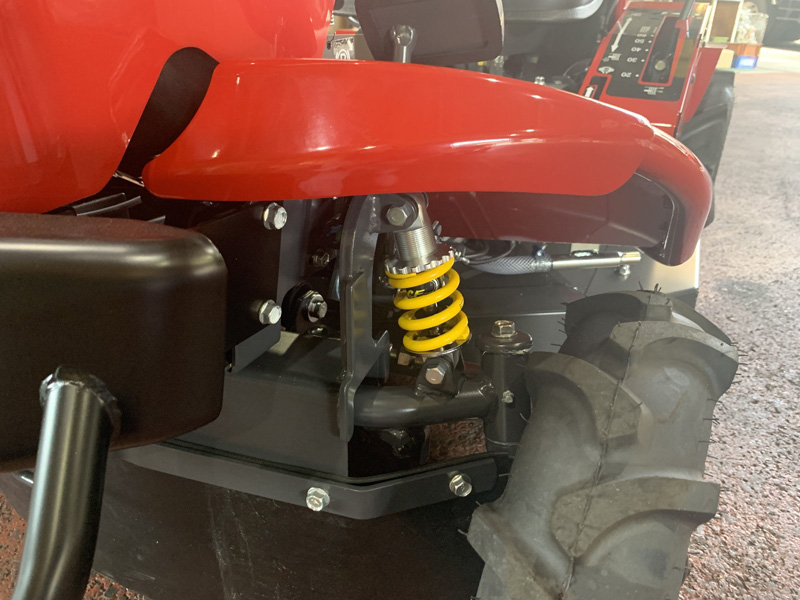

  • Industry first front suspension
  • Well built & easy to operate
    Exceptionally durable, designed for ease of maintenance.
  • Versatile cutting
    From overgrown vegetation to your front lawn.
  • Service Dealers
    Available NZ wide.
  • Made in Japan
Videos
Features
Specifications
Optional Accessories
Applications

Features

  • Kawasaki FS481 V Twin engine.

  • Capable of cutting grass, broom, gorse and saplings.

  • Able to operate in wet muddy and hilly conditions.

  • Clear overgrown areas of your property safely and with ease, due to excellent traction from tractor style mud grip tyres.

  • Heavy duty flail blades.

  • Diff lock and Hi-Lo Speed Selection

  • Fabricated chassis.

  • Step-less blade height adjustment.

  • Expanding shoe emergency and park brake.

  • Hand and foot operated travel control.

  • Light steering with tight turning radius.

  • Comfortable Adjustable Seat

  • Easy access maintenance points.

  • Low centre of gravity.

  • Industry first front suspension

  • These machines are exceptionally well built and easy to maintain and operate.

  • They will cut vegetation and go places you won't believe but they will also cut your front lawn.

  • Service Dealers NZ wide

  • Made in Japan.

Specifications

  • Dimension (L x W x H) (mm)

    1880 X 920 X 905

  • Ground clearance (mm)

    115

  • Wheelbase (mm)

    1155

  • Machine mass (kg)

    255

  • Front wheel tread (mm)

    790

  • Rear wheel tread(mm)

    735

  • Cutting width (mm)

    800 (32")

  • Cutting blade components

    Heavy duty flail blades.

  • Fixing of cutting blade

    Lock Nut Type

  • Cutting height (mm)

    20 to 90 (Stepless adjustment)

  • Work clutch

    V Belt tension type (interlocked with brake)

  • Working efficiency

    80 - 51 (a/h)

  • Main Transmission

    HST Stepless Shifting, Rear Wheel Drive

  • Brake

    Drum brake

  • Forward (km/h)

    0-10.0

  • Reverse (km/h)

    0-6

  • Front wheel

    3.5-7 (φ350mm)

  • Rear wheel

    16X7.00-8(φ400mm)

  • Steering method

    Round steering wheel with knob, rack & pinion mechanism

  • Manufacturer

    Kawasaki

  • Engine Model

    FS481V (Air cooled, V-type, 2 cylinder OHV gasoline engine)

  • Fuel tank capacity (L)

    14

  • Steering wheel vertical adjustment (mm)

    3 levels

  • Incline Meter

    Yes

  • Hour Meter

    Yes

  • Oil warning Lamp

    Yes

  • Front Suspension

    Yes

  • Seat

    Yes

OPTIONAL ACCESSORIES

  • Bullbar, Folding ROPS Frame for added safety and protection.

Bull Bar Optional Accessories

Applications

  • Rough Terrain and Slopes: Clearing overgrown areas, maintaining steep hillsides, wet, muddy conditions.

  • Heavy Vegetation: Cut grass, broom, gorse, and saplings, making them useful for clearing overgrown properties.

  • Steep Slopes: Mowing up to 20-degree slopes.

  • General Lawn Maintenance: Also suitable for general lawn mowing on flatter ground.
