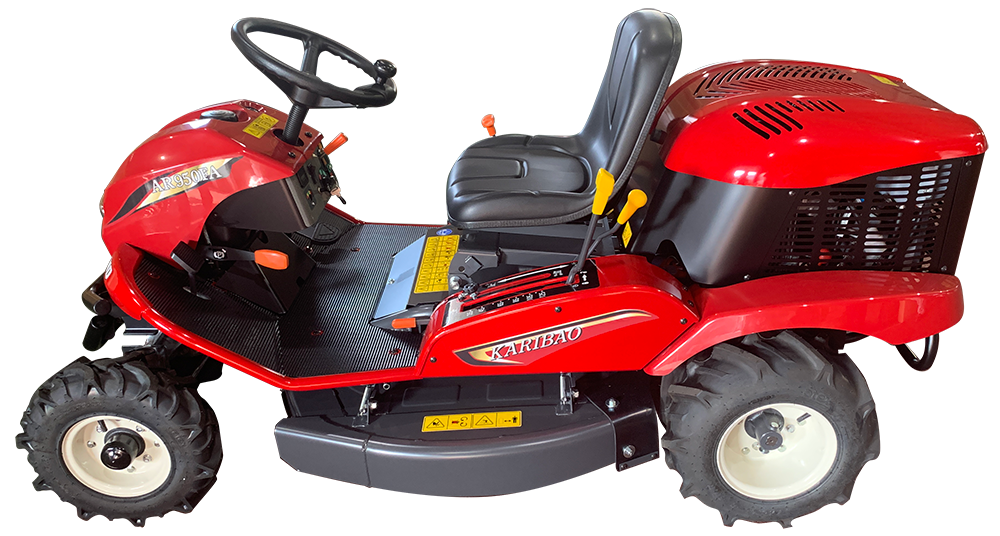

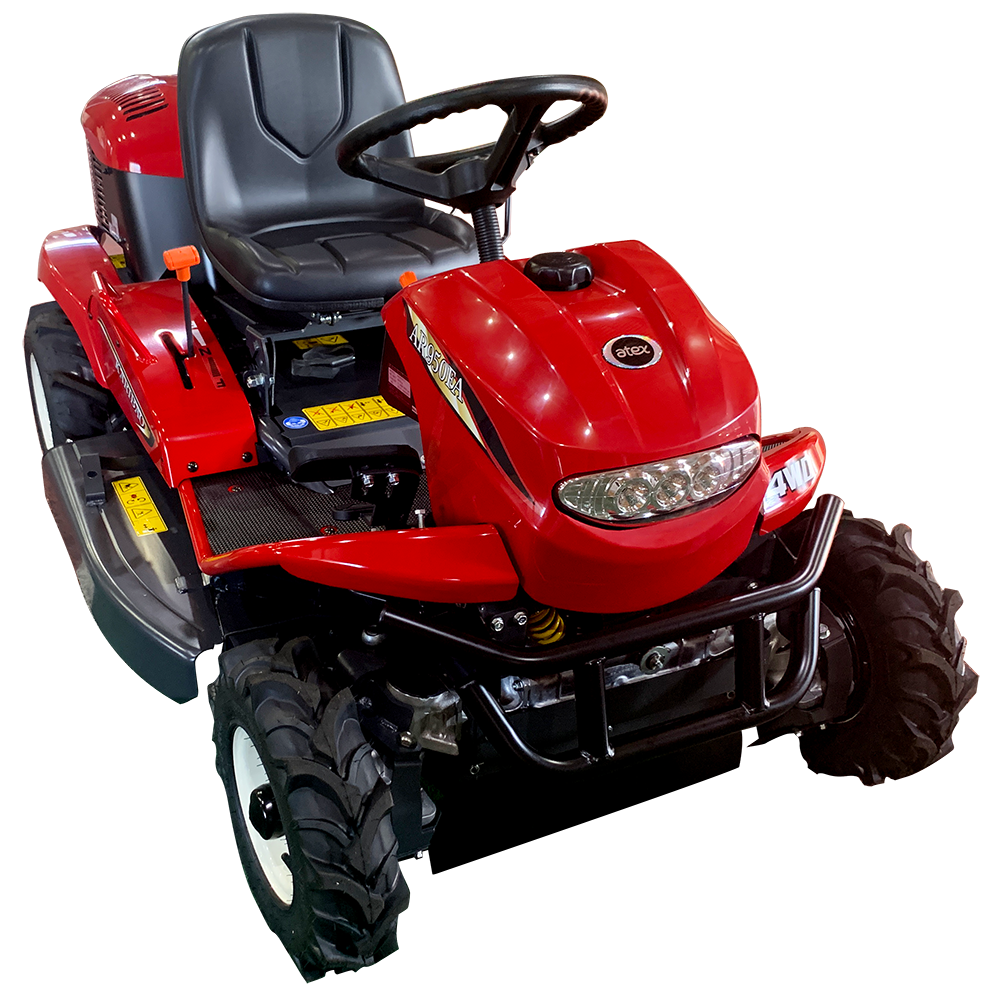

AR950FA

Features

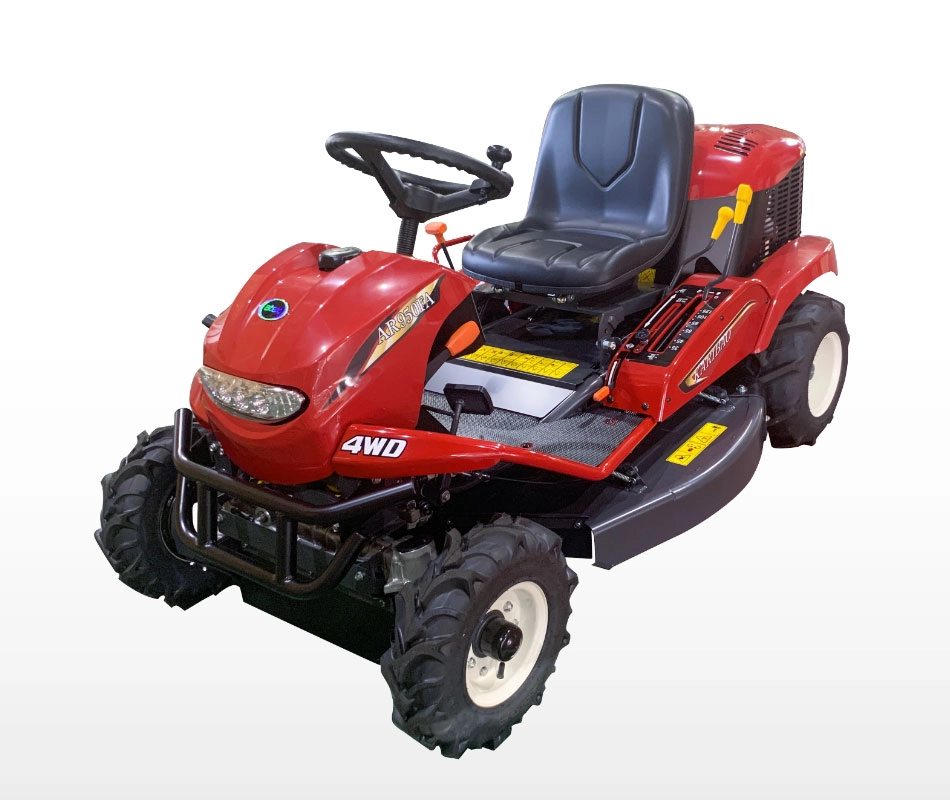

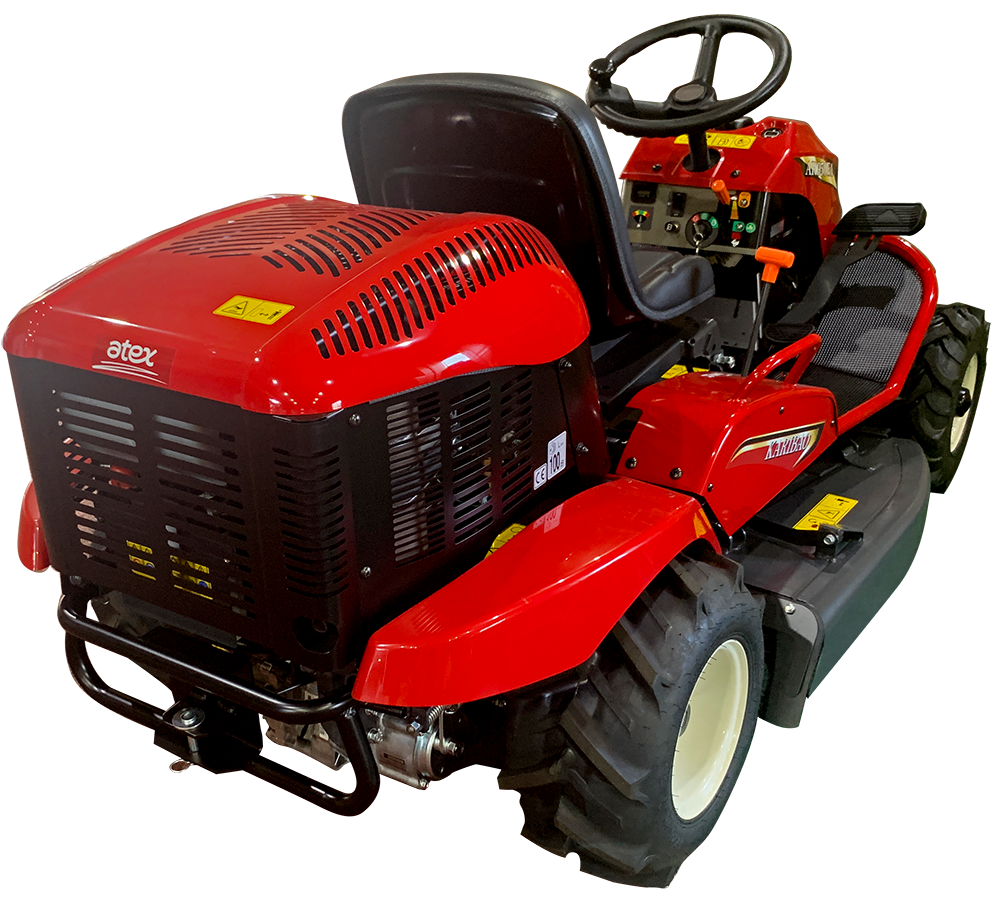

• Atex AR950FA 4WD Ride on Mower.

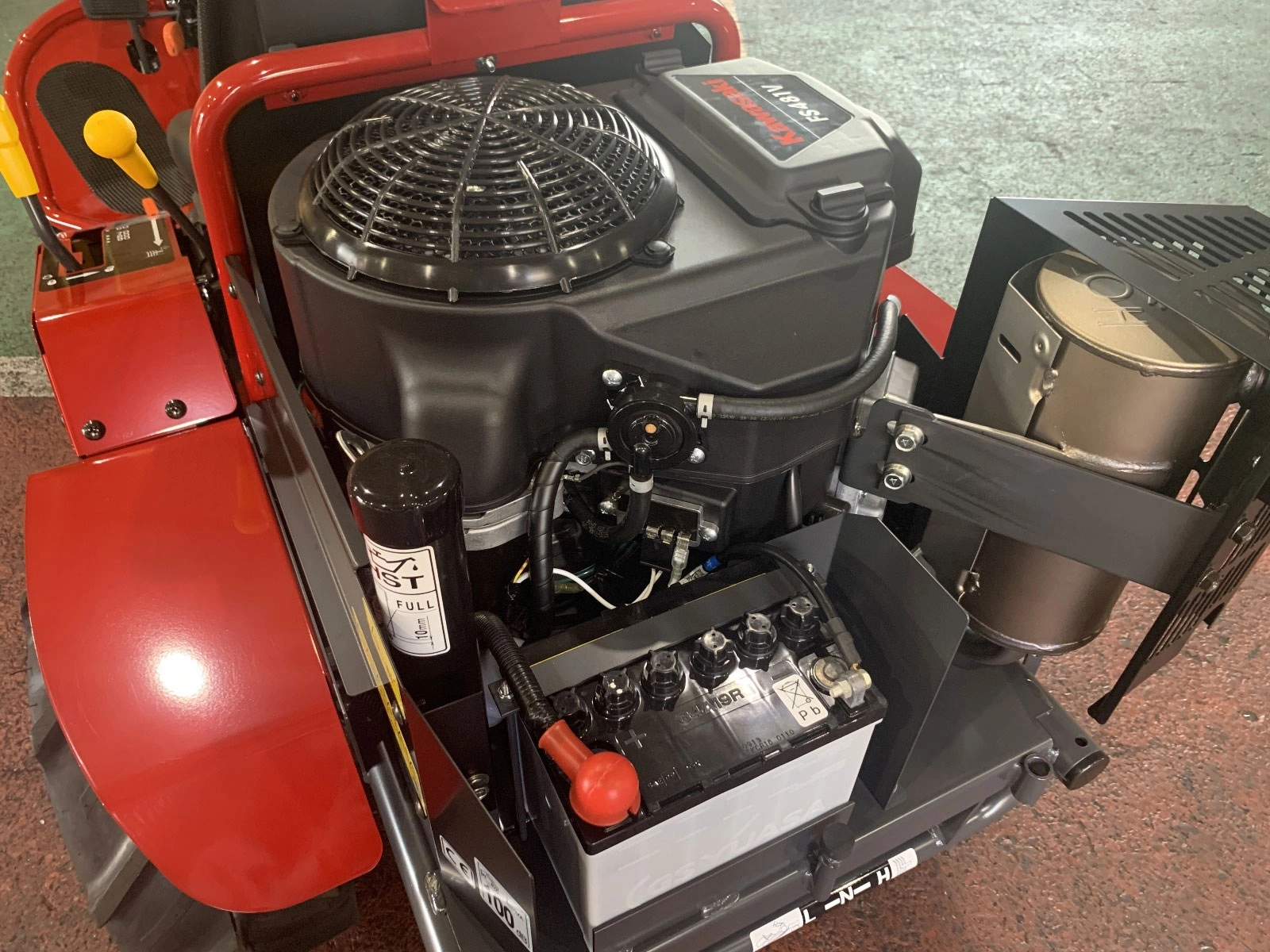

• Kawasaki FS691 V Twin engine.

• Capable of cutting grass, broom, gorse and saplings.

• Able to operate in wet muddy and hilly conditions.

• Clear overgrown areas of your property safely and with ease, due to excellent traction from tractor style mud grip tyres.

• Heavy duty flail blades.

• Diff lock and 4WD on demand

• Fabricated chassis.

• Step-less blade height adjustment.

• Expanding shoe emergency and park brake.

• Hand and foot operated travel control.

• Light steering with tight turning radius.

• Comfortable Adjustable Seats.

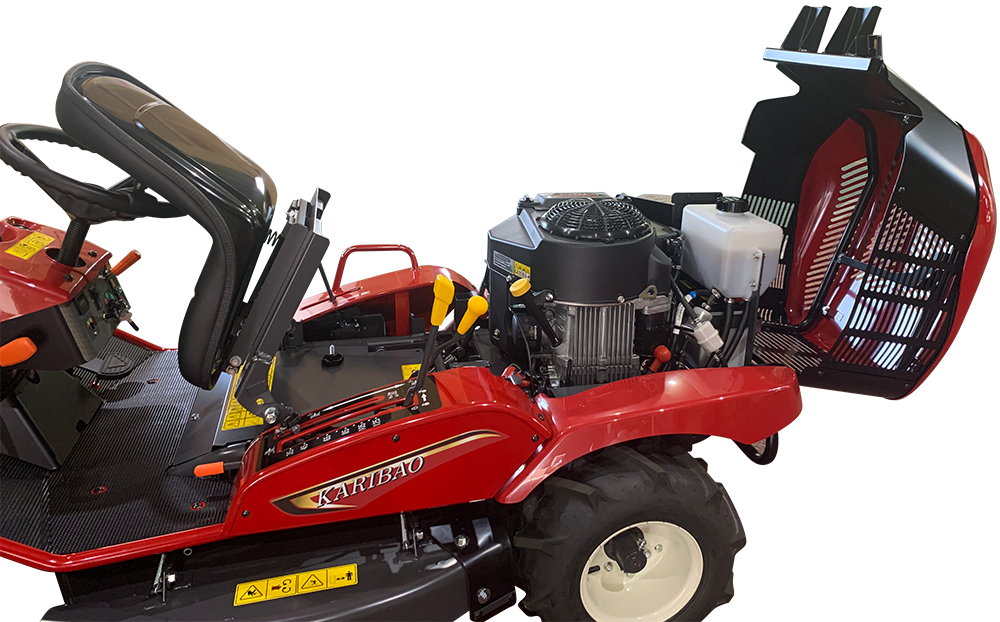

• Easy access maintenance points.

• Low centre of gravity.

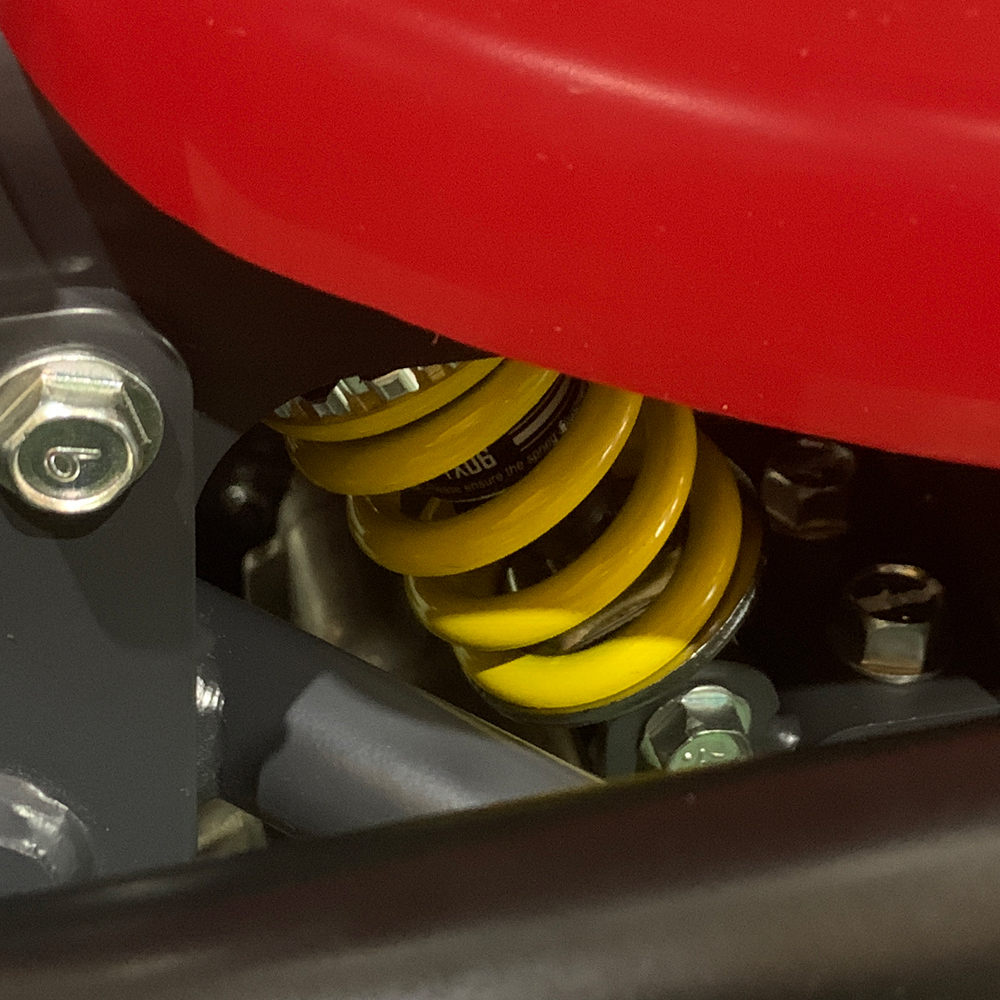

• Industry first front suspension

• These machines are exceptionally well built and easy to maintain and operate.

• They will cut vegetation and go places you won't believe but they will also cut your front lawn.

• Made in Japan.

Specifications

• Dimension (L x W x H) (mm)

  1965 X1075 X 955

• Wheelbase (mm)

  1320

• Machine mass (kg)

  360

• Cutting width (mm)

  950

• Cutting height (mm)

  35 to 125

• Cutting blade type X Q'ty

  Free knife x 2 pcs

• Fixing of cutting blade

  Lock Nut Type

• Work clutch

  V Belt (interlocked with brake)

• Driving system

  V-belt (Brake interlock)

• Cutting Width

  38” (950mm)

• Brake

  Internally expanding

• Forward (km/h)

  0-10.0

• Reverse (km/h)

  0-8.5

• Front wheel

  4.00-7（φ400mm)

• Rear wheel

  17Ｘ8.00-8（φ440mm)

• Driving system

  On-Demand 4WD

• Main transmission

  Hydrostatic (13 cc, with Charge Pump)

• Operation

  Pedal, Lever

• Differential lock

  Standard

• Min. turning radius (mm)

  2200

• Max. inclination (°)

  25

• Manufacturer/Model

  KAWASAKI FS 691 V

• Maximum Output

  17.5 / 20.8

• Fuel

  Unleaded gasoline

• Fuel tank capacity (L)

  14 (with Fuel Gauge)

• Seat adjustment

  Forward and Back

• Head light

  LED

• Blade Cover

  Yes

• Hour meter

  Yes

• Oil lamp warning

  Yes

• Towing hook

  Yes

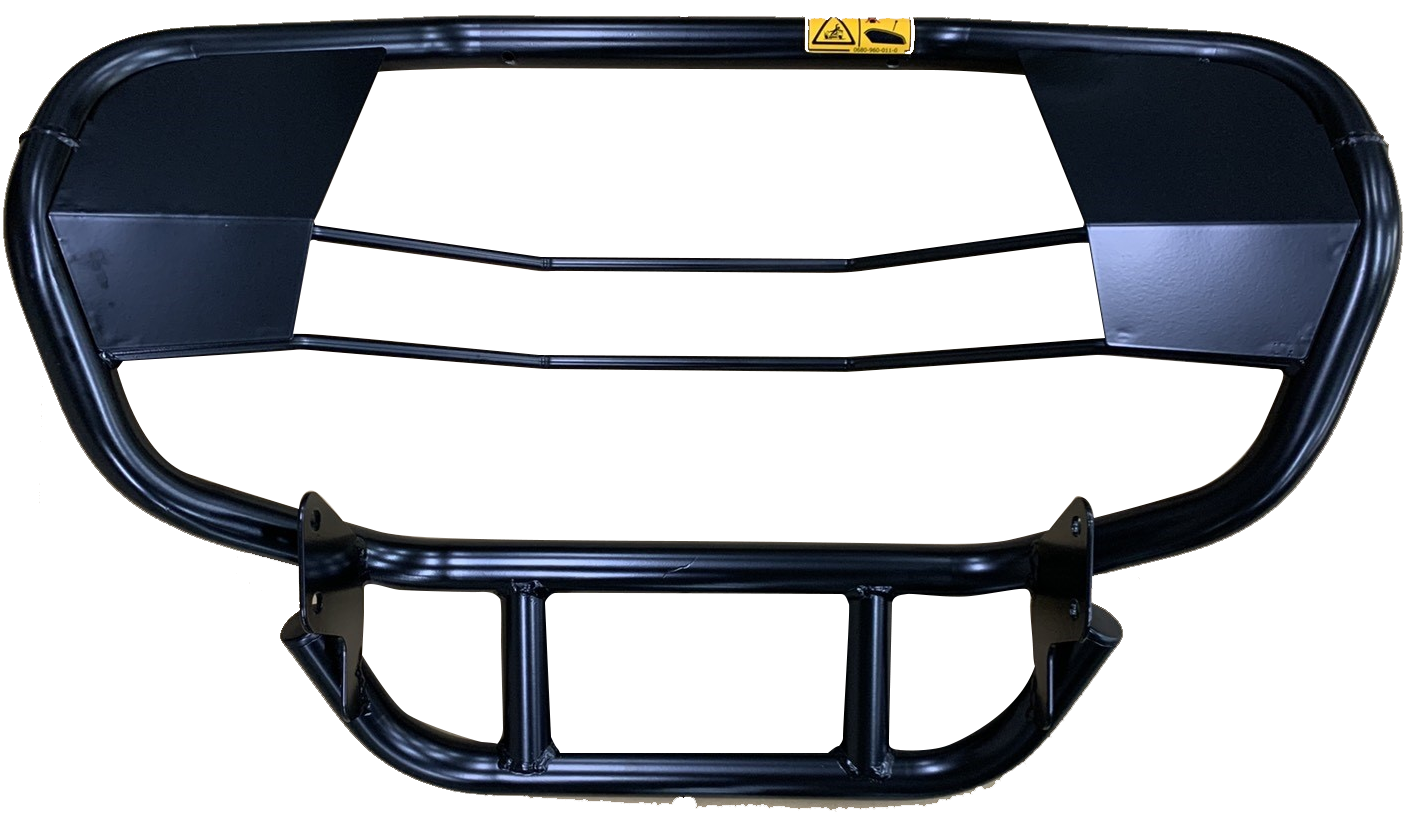

• Bullbar, Folding ROPS Frame for added safety and protection.

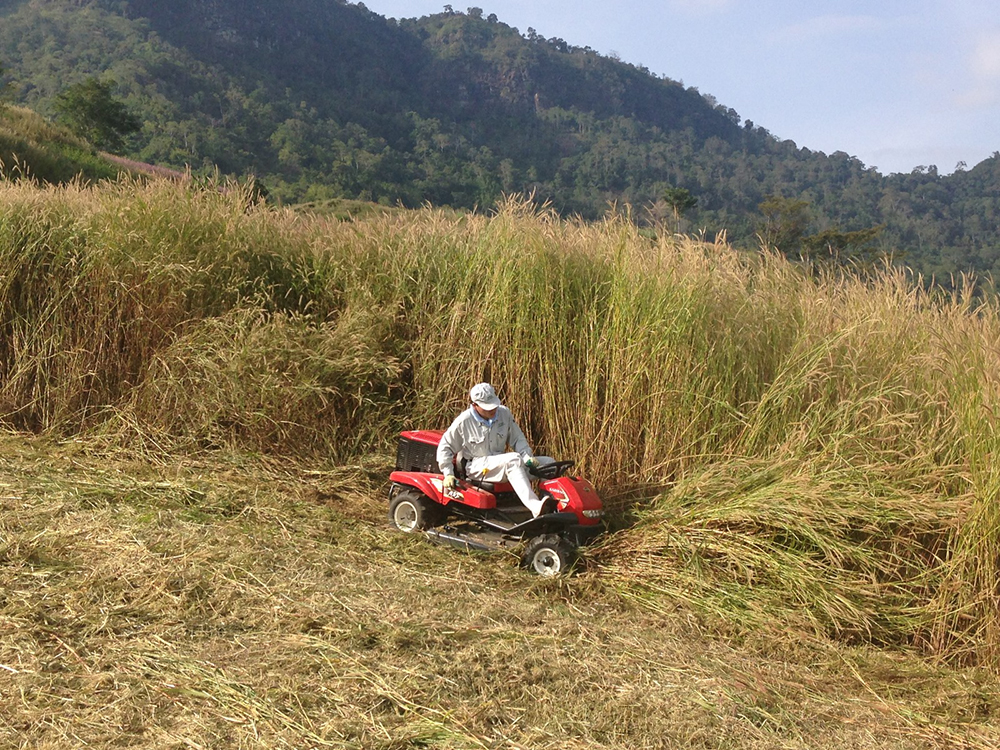

• Rough Terrain and Slopes: Clearing overgrown areas, maintaining steep hillsides, wet, muddy conditions.

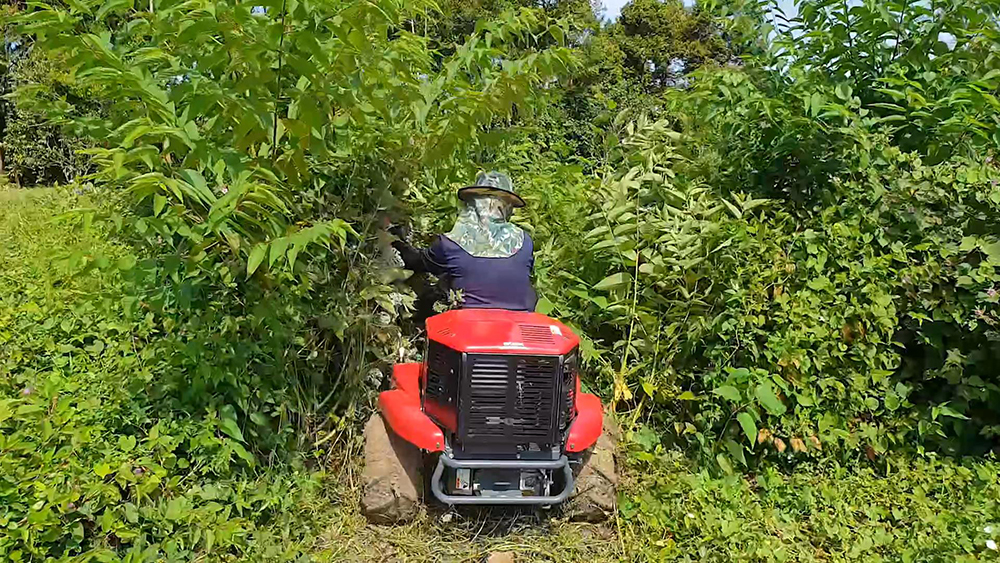

• Heavy Vegetation: Cut grass, broom, gorse, and saplings, making them useful for clearing overgrown properties.

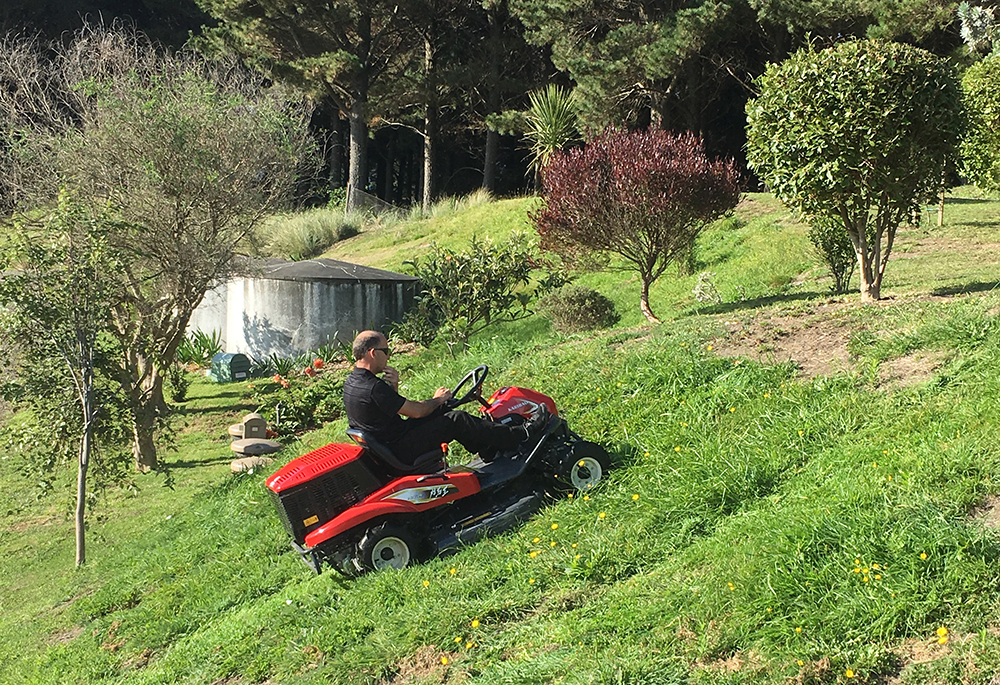

• Steep Slopes: Mowing up to 25-degree slopes.

• General Lawn Maintenance: Also suitable for general lawn mowing on flatter ground.
