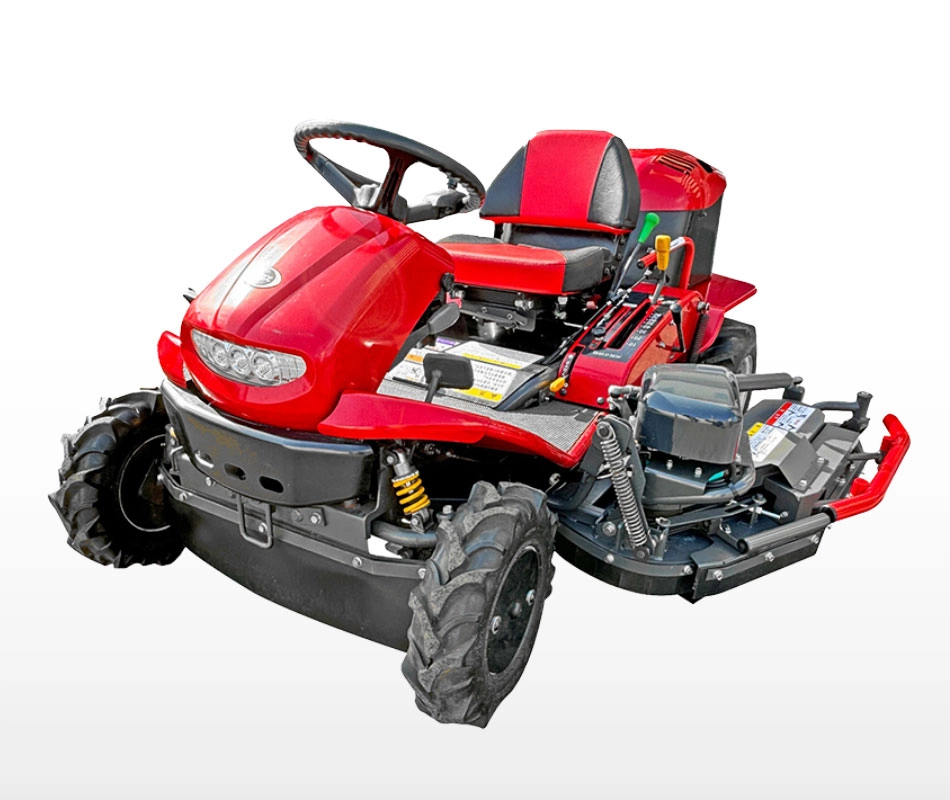

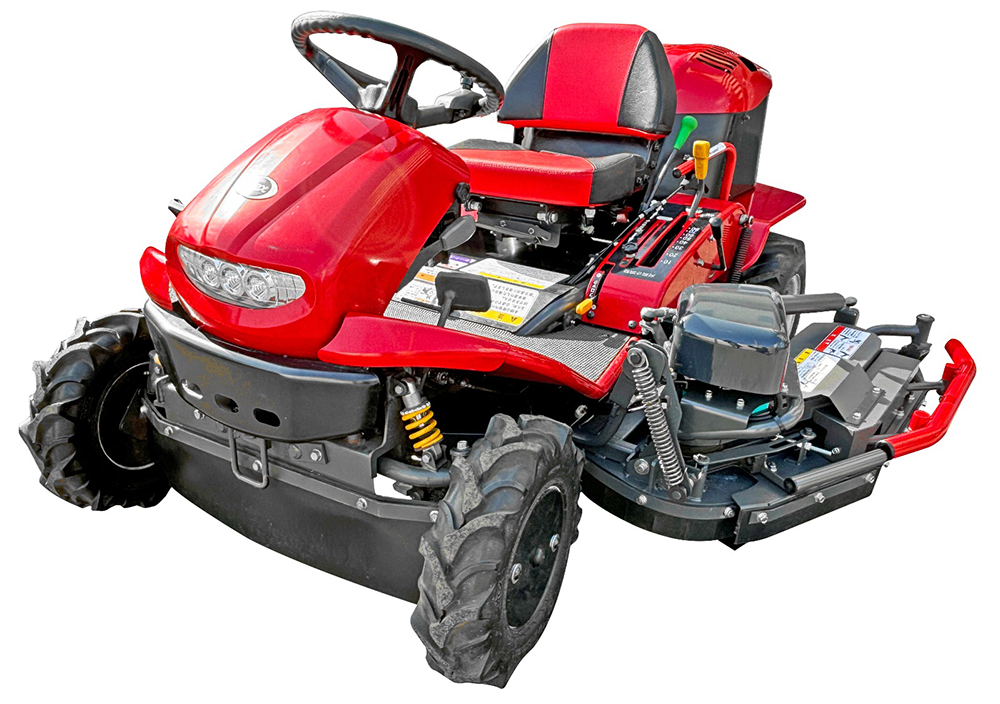

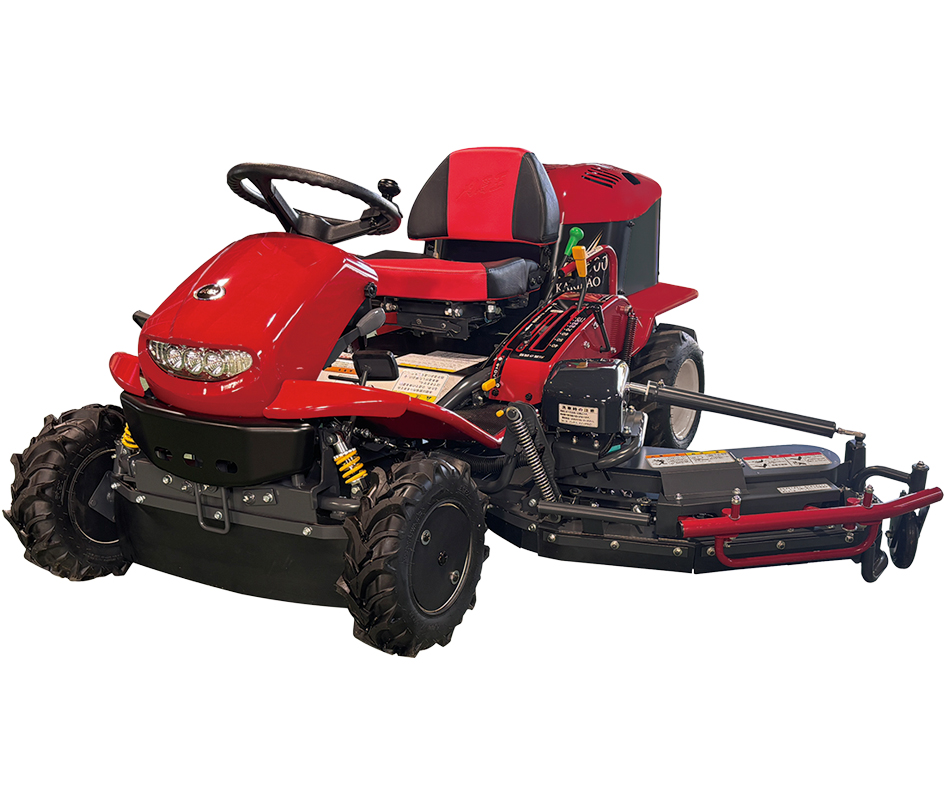

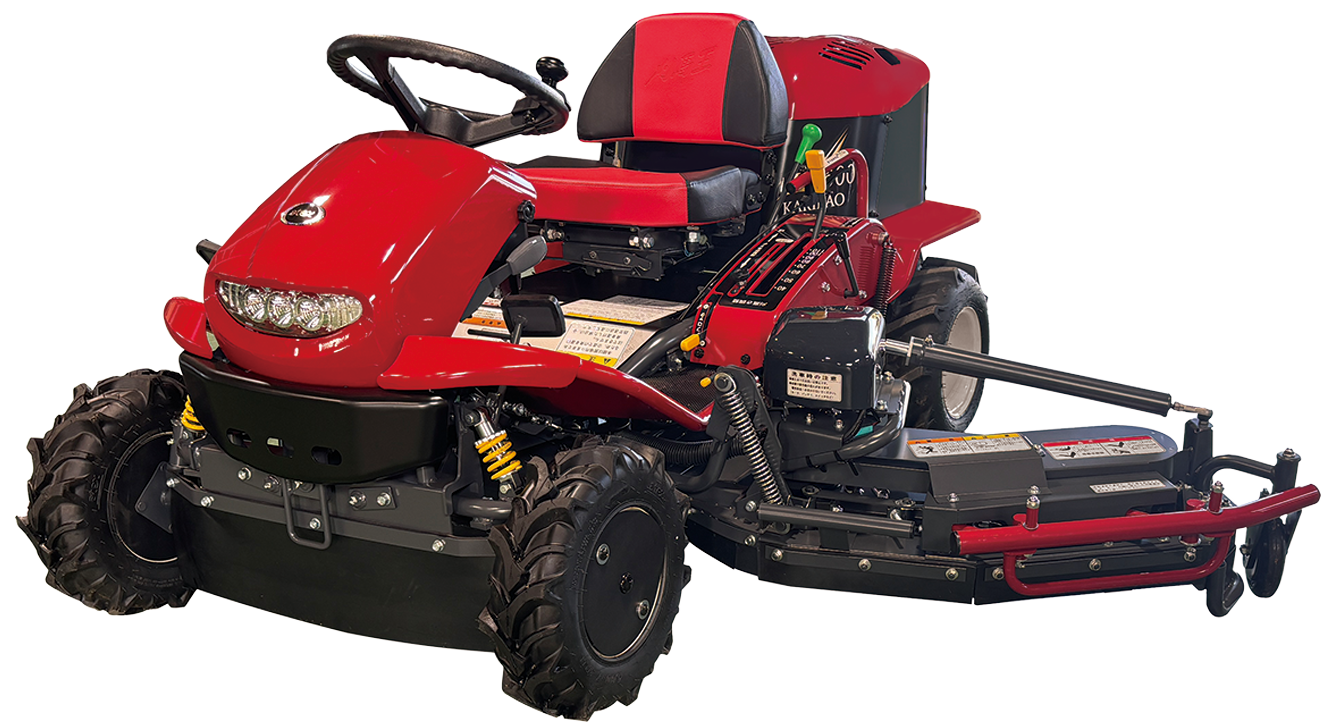

R1600

2WD Ride-on Mower

Key Features
  • High-Capacity Hydrostatic Transmission
    13CC for powerful drive on steep, challenging slopes.
  • Comfortable Adjustable Seat
    For long hours of operation without fatigue.
  • Diff Lock
    Enhanced traction on uneven terrain.
  • Kawasaki V-Twin Engine
    Smooth, quiet operation with low fuel consumption.
  • Climbing Capability
    Handles slopes up to 20°.
  • Fabricated Chassis
    Designed for durability and heavy-duty use.

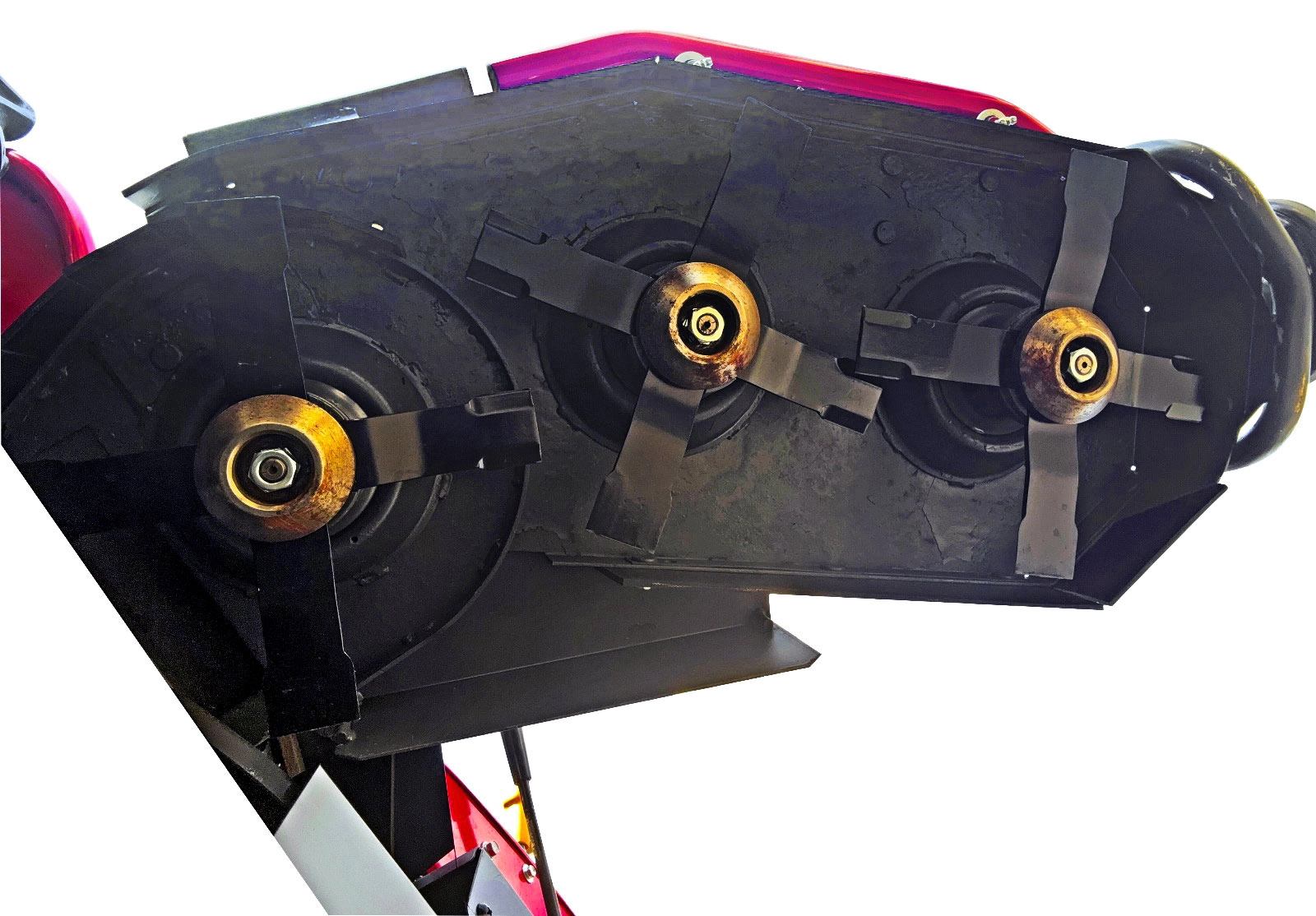

  • Flail Blade Cutting System
    Efficient and precise cutting for demanding applications.
  • Heavy-Duty Mowing Decks
    Built to withstand tough conditions.
  • Adjustable Steering Wheel
    3-position steering wheel for optimal comfort.
  • Underbody Skid Plates
    Protects the mower from rough ground.
Videos
Features
Specifications
Optional Accessories
Applications

Features

  • Great operator features and comfort

  • Comfortable Adjustable Seat

  • Cutting Width 48”-63” (1240-1590mm)

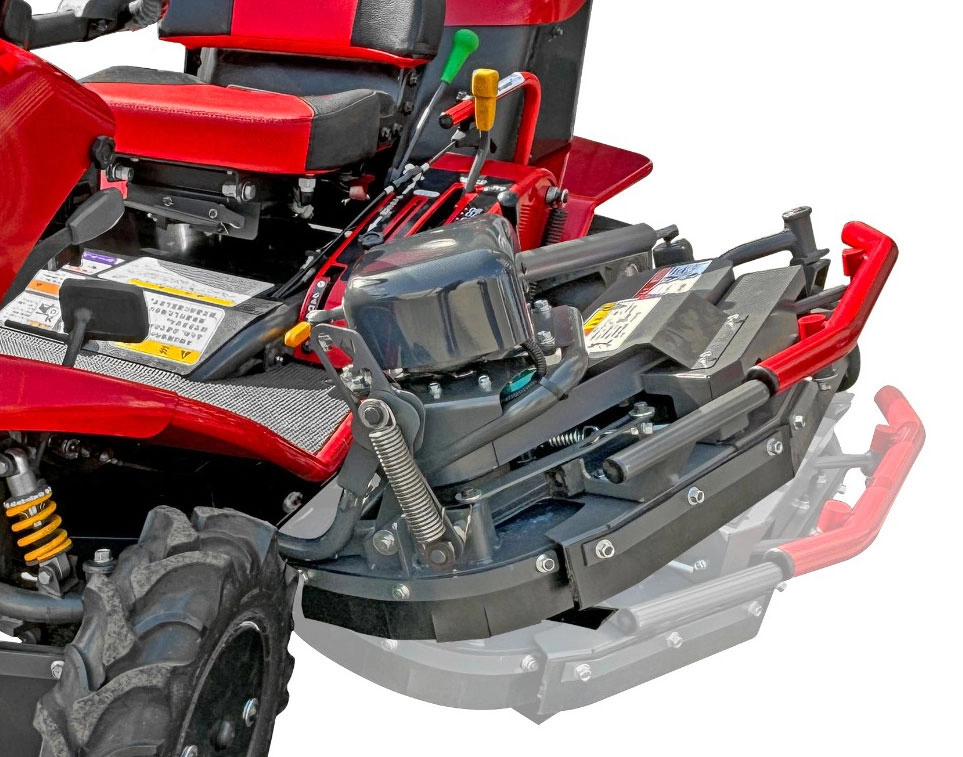

  • Side Retractable Wing Mower can be operated automatically or manually

  • Sensor detects objects and pulls wing mower in till the mower had past the object

  • Choose 1240mm cutting width or up to 1590mm

  • Hi-Lo Speed Options

  • Made in Japan

Specifications

  • Dimensions (L x W x H)

    1910 x 1410–1780 x 900 mm

  • Machine Mass

    368 kg

  • Front Wheel Tread

    790 mm

  • Rear Wheel Tread

    735 mm

  • Cutting Width

    1240–1590 mm

  • Cutting Blade Components

    Flail Knife x 2 pcs

  • Cutting Height

    40–110 mm (Stepless Adjustment)

  • Work Clutch

    V Belt Tension Type (Interlocked with Brake)

  • Main Transmission

    HST Stepless Shifting, Rear Wheel Drive

  • Brake

    Drum Brake

  • Forward Speed

    0–10.5 km/h

  • Reverse Speed

    0–6.3 km/h

  • Front Wheel

    4.00–7

  • Rear Wheel

    17x8.00–8

  • Engine

    Kawasaki FS691V (Air Cooled, V-Twin, OHV Gasoline)

  • Fuel Tank Capacity

    12 L

  • Hour Meter

    Yes

  • Oil Warning Lamp

    Yes

  • Front Suspension

    Yes

  • Diff Lock

    Yes

  • Hi/Lo Speed Selection

    Yes

  • Seat

    Included

  • Bullbar, Folding ROPS Frame for added safety and protection.

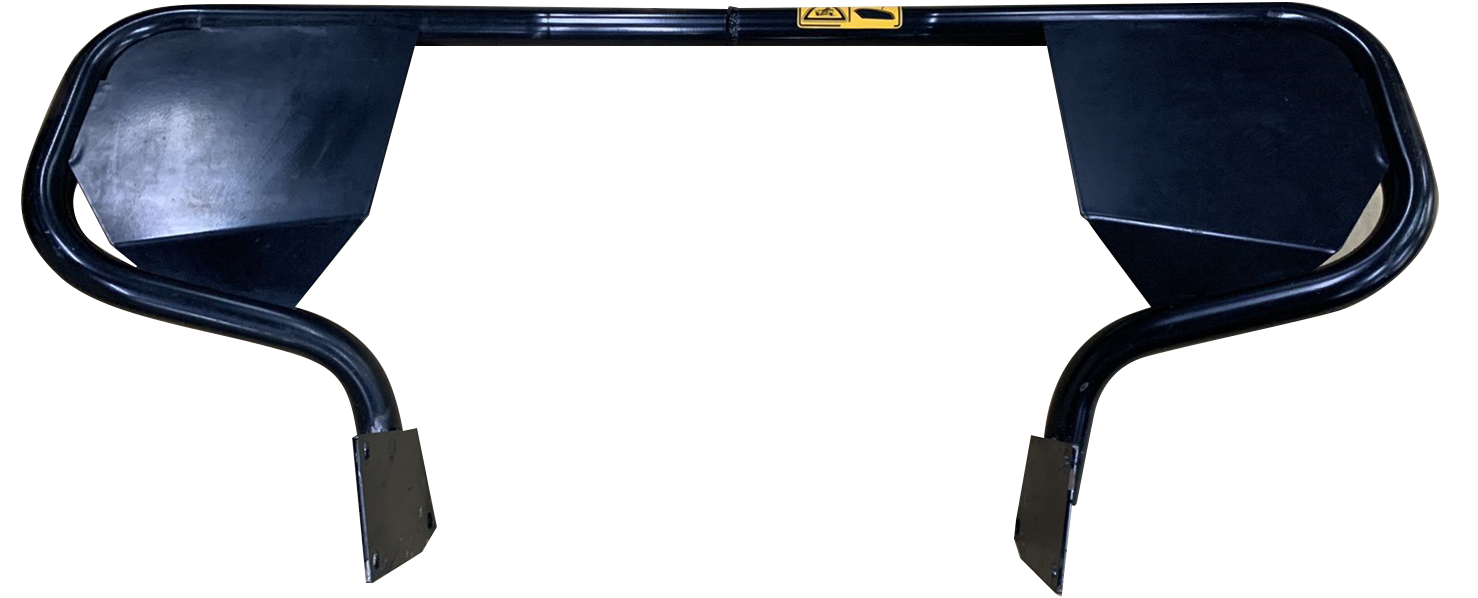

Bull Bar Optional Accessories
  • Rough Terrain and Slopes: Clearing overgrown areas, maintaining steep hillsides, wet, muddy conditions.

  • Heavy Vegetation: Cut grass, broom, gorse, rushes, kikuyu, agapanthus, and saplings and more!, ideal for clearing overgrown properties.

  • Steep Slopes: Mowing up to 20-degree slopes.

  • General Lawn Maintenance: Also suitable for general lawn mowing on flatter ground.

  • Ideal for mowing Orchards, around trees, under post and rail fences.
